Y Shape Cnc Tombstones

At Hidrofix, we manufacture CNC horizontal machining towers in the desired sizes and dimensions for every model of every brand of machining center. For custom CNC horizontal machining tower manufacturing, please contact us at our contact addresses.

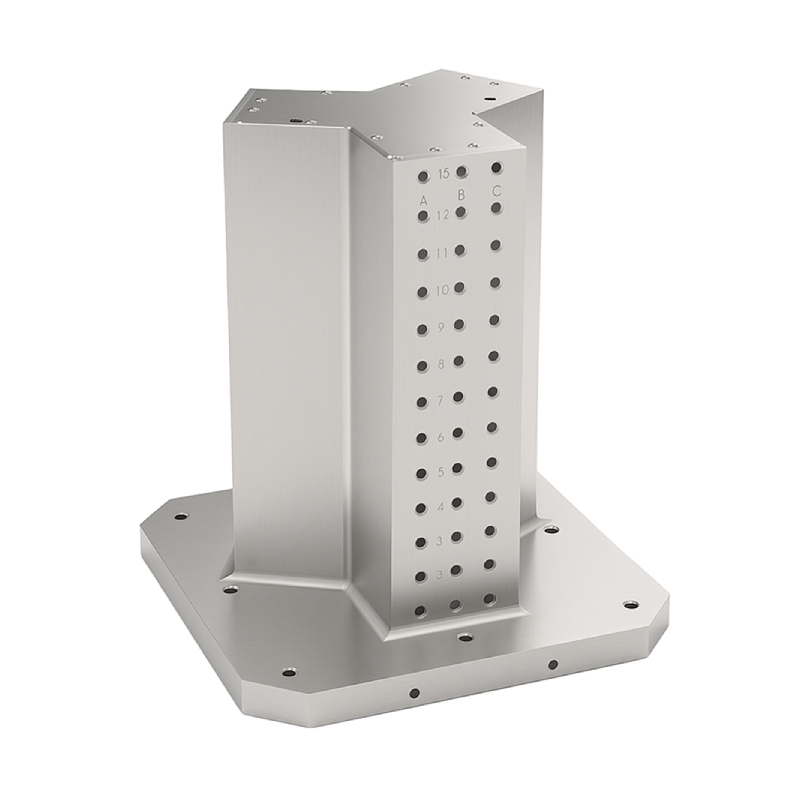

Y Shape Cnc Tombstones

Y tombstones are perfectly suited for three-sided machining operations while maintaining excellent tool clearance, making them ideal for complex, multi-face setups. Depending on your specific application, the corner surfaces can also be utilized for mounting additional components, maximizing workholding capacity. If a smooth, featureless surface is not required, our Y tombstones are available with a range of grid configurations, including the industry-standard 2″ grid, T-slots, or fully customized layouts.

Key Features

Compatible with both 1/2″ and 5/8″ systems, offering grid holes, precision bushings, and threaded inserts for flexible fixturing
Hardened, threaded inserts enable secure clamping at every hole location and can be quickly replaced when needed, ensuring long-term reliability
High-precision, heat-treated bushings are accurately positioned to provide repeatable part alignment and superior resistance to wear
Replacement kits for bushings and inserts, along with a dedicated extraction tool, are available upon request to support easy maintenance and extended service life

Tolerance	Precision
Flatness (tombstones & plates)	0.0005 / 12×12
Parallelism (plates)	0.0005 / 12, Max 0.002 total
Perpendicularity	0.0008 / 12, Min 0.001, Max 0.002 / 48
Surface Finish	63 RMS
Face Thickness	≤18” = ±0.002, >18” = ±0.003
Tapped Holes (non-accumulative)	±0.005
Precision Bushing I.D.	+0.0013 / +0.0007
Precision Bushing Concentricity	0.0001
Bored or Precision Bushing Hole to Adjacent Hole	±0.0005
First Row Bushing Hole Location from Datums	±0.002
Bored or Precision Bushing Hole Spacing (non-accumulative)	0–10″: ±0.0005 10–20″: ±0.0008 20–30″: ±0.0010 30–40″: ±0.0012
Note:	For aluminum, increase these tolerances by 50%
