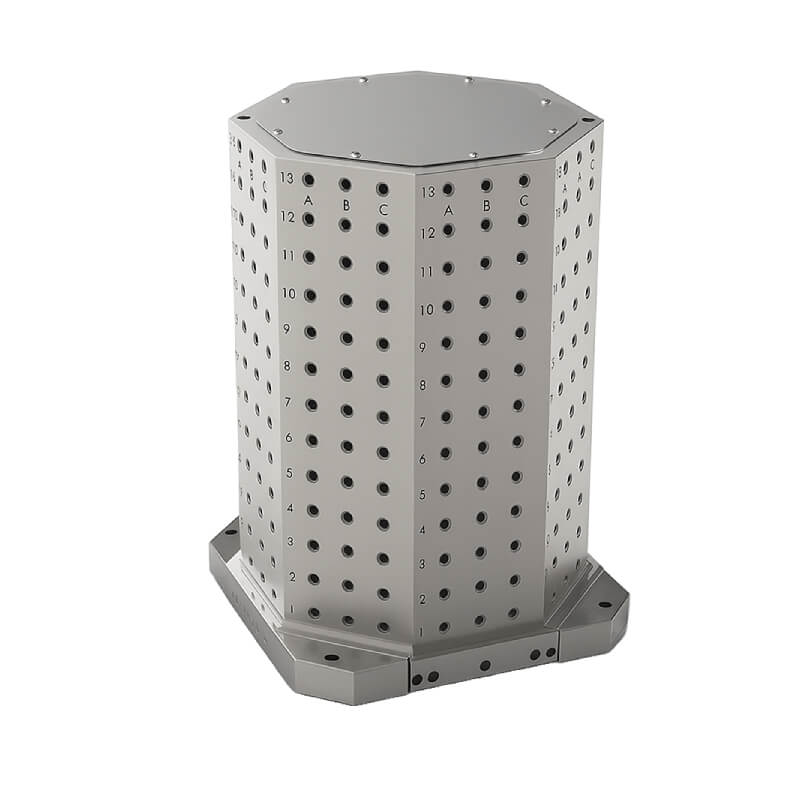

Octagon Cnc Tombstones

Octagon tombstones are engineered to maximize part density and workholding capacity, making them ideal for high-volume production environments. With eight usable faces, they offer exceptional flexibility for mounting multiple components while maintaining excellent accessibility for machining operations. When a smooth, featureless surface is not required, our octagon tombstones are available with a range of grid configurations, including the industry-standard 2″ grid, T-slots, or fully customized layouts to suit specific application needs.

Key Features

  • Grid patterns with holes, precision bushings, and inserts are offered for both 1/2″ and 5/8″ systems, supporting versatile fixturing options
  • Hardened threaded inserts enable secure clamping at every grid point and are designed for fast, simple replacement to minimize downtime
  • High-precision, heat-treated bushings are accurately positioned to ensure reliable, repeatable part alignment and superior resistance to wear
  • Replacement bushings, inserts, and an extraction tool are available upon request to support long-term maintenance and consistent performance
Teknik Tablo
Katı Model
Tolerance Precision
Flatness (tombstones & plates) 0.0005 / 12×12
Parallelism (plates) 0.0005 / 12, Max 0.002 total
Perpendicularity 0.0008 / 12, Min 0.001, Max 0.002 / 48
Surface Finish 63 RMS
Face Thickness ≤18” = ±0.002, >18” = ±0.003
Tapped Holes (non-accumulative) ±0.005
Precision Bushing I.D. +0.0013 / +0.0007
Precision Bushing Concentricity 0.0001
Bored or Precision Bushing Hole to Adjacent Hole ±0.0005
First Row Bushing Hole Location from Datums ±0.002
Bored or Precision Bushing Hole Spacing (non-accumulative) 0–10″: ±0.0005
10–20″: ±0.0008
20–30″: ±0.0010
30–40″: ±0.0012
Note: For aluminum, increase these tolerances by 50%
