Consoles Cnc Tombstones

At Hidrofix, we manufacture CNC horizontal machining towers in the desired sizes and dimensions for every model of every brand of machining center. For custom CNC horizontal machining tower manufacturing, please contact us at our contact addresses.

Consoles Cnc Tombstones

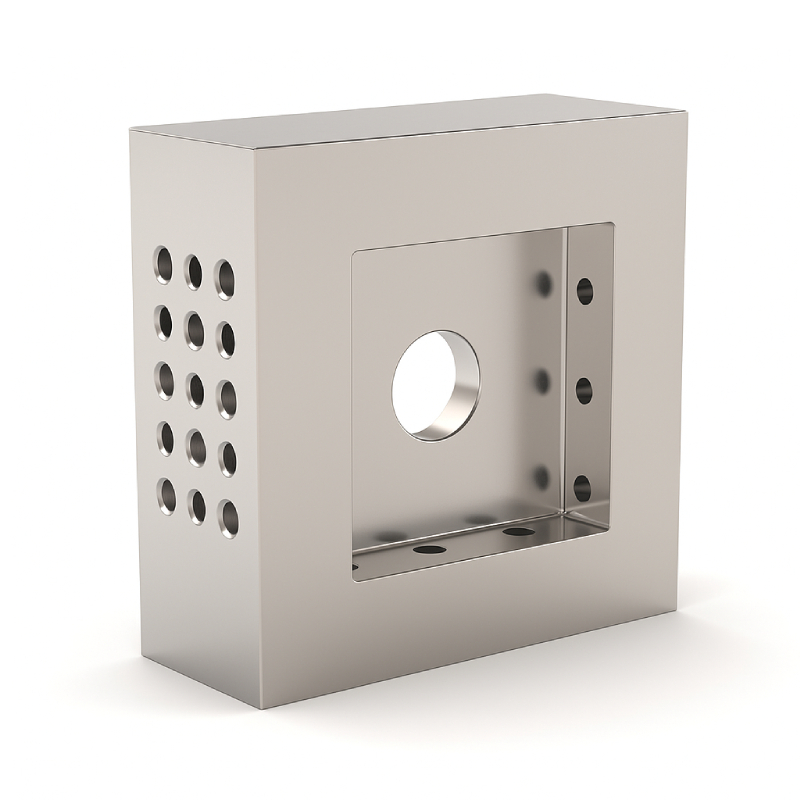

Consoles are utilized to achieve adjustable support heights, enabling machining on up to four sides of a workpiece. When a smooth, unfeatured tombstone surface is not preferred, our cube tombstones can be equipped with various grid systems, including the industry-standard 2″ grid, T-slots, or custom configurations.

Key Features

Grid patterns with holes, bushings, and inserts are offered for both 1/2″ and 5/8″ systems
Hardened threaded inserts provide clamping capability in every hole and allow for fast, simple replacement
Precision-ground, hardened bushings are precisely positioned to ensure accurate workpiece alignment and excellent wear resistance
Replacement kits for bushings and inserts, along with a dedicated removal tool, are available upon request

Tolerance	Precision
Flatness (tombstones & plates)	0.0005 / 12×12
Parallelism (plates)	0.0005 / 12, Max 0.002 total
Perpendicularity	0.0008 / 12, Min 0.001, Max 0.002 / 48
Surface Finish	63 RMS
Face Thickness	≤18” = ±0.002, >18” = ±0.003
Tapped Holes (non-accumulative)	±0.005
Precision Bushing I.D.	+0.0013 / +0.0007
Precision Bushing Concentricity	0.0001
Bored or Precision Bushing Hole to Adjacent Hole	±0.0005
First Row Bushing Hole Location from Datums	±0.002
Bored or Precision Bushing Hole Spacing (non-accumulative)	0–10″: ±0.0005 10–20″: ±0.0008 20–30″: ±0.0010 30–40″: ±0.0012
Note:	For aluminum, increase these tolerances by 50%
